Precision Charge Neutralisation
Just enough gas, exactly where it's needed.
A trace of gas, delivered to the ROI.
A motorised needle carries the jet there and keeps it there. Neutralising the charge takes a very small flow — nothing like backfilling the whole chamber.

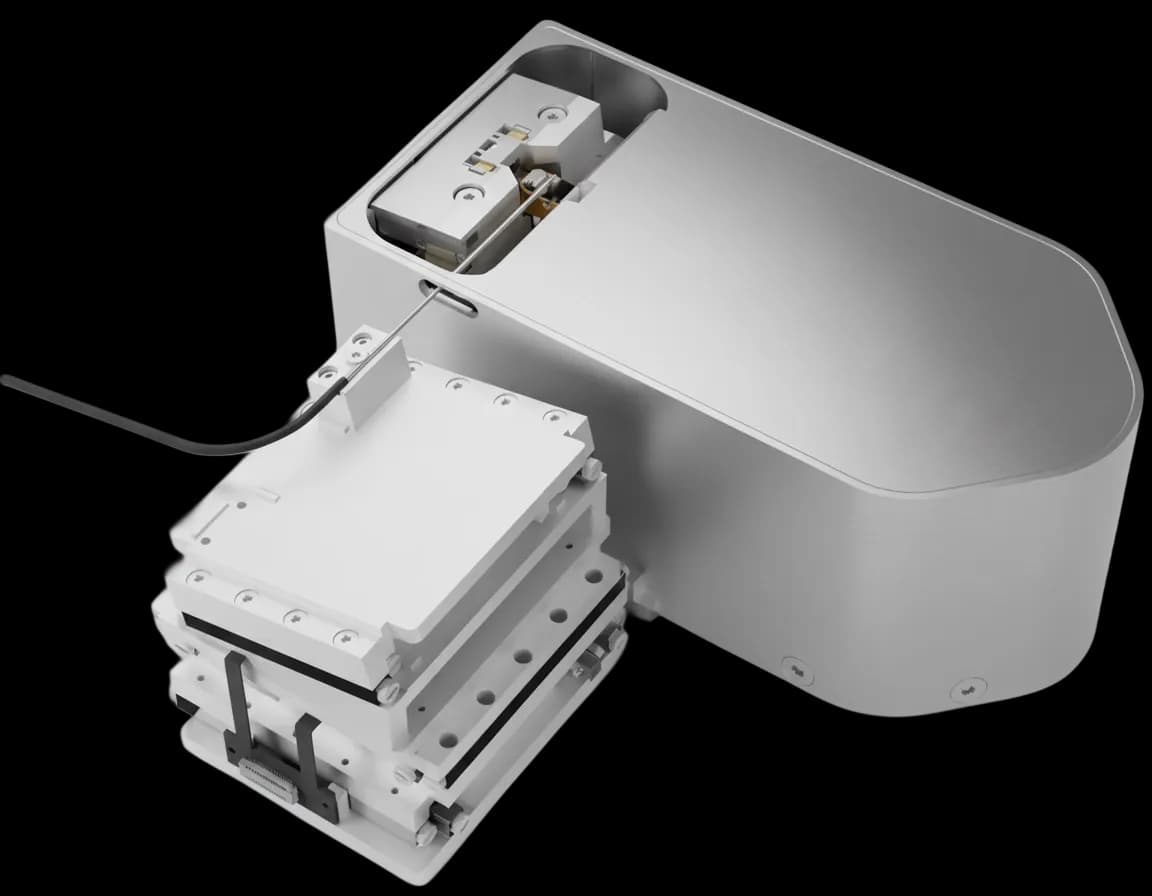

Built for the katana
A dedicated attachment for the katana microtome — it slots into the hardware and software you already run.
Non-conductive samples, without the charge
The same resin-embedded block face, without and with Precision Charge Neutralisation — both imaged at high vacuum.

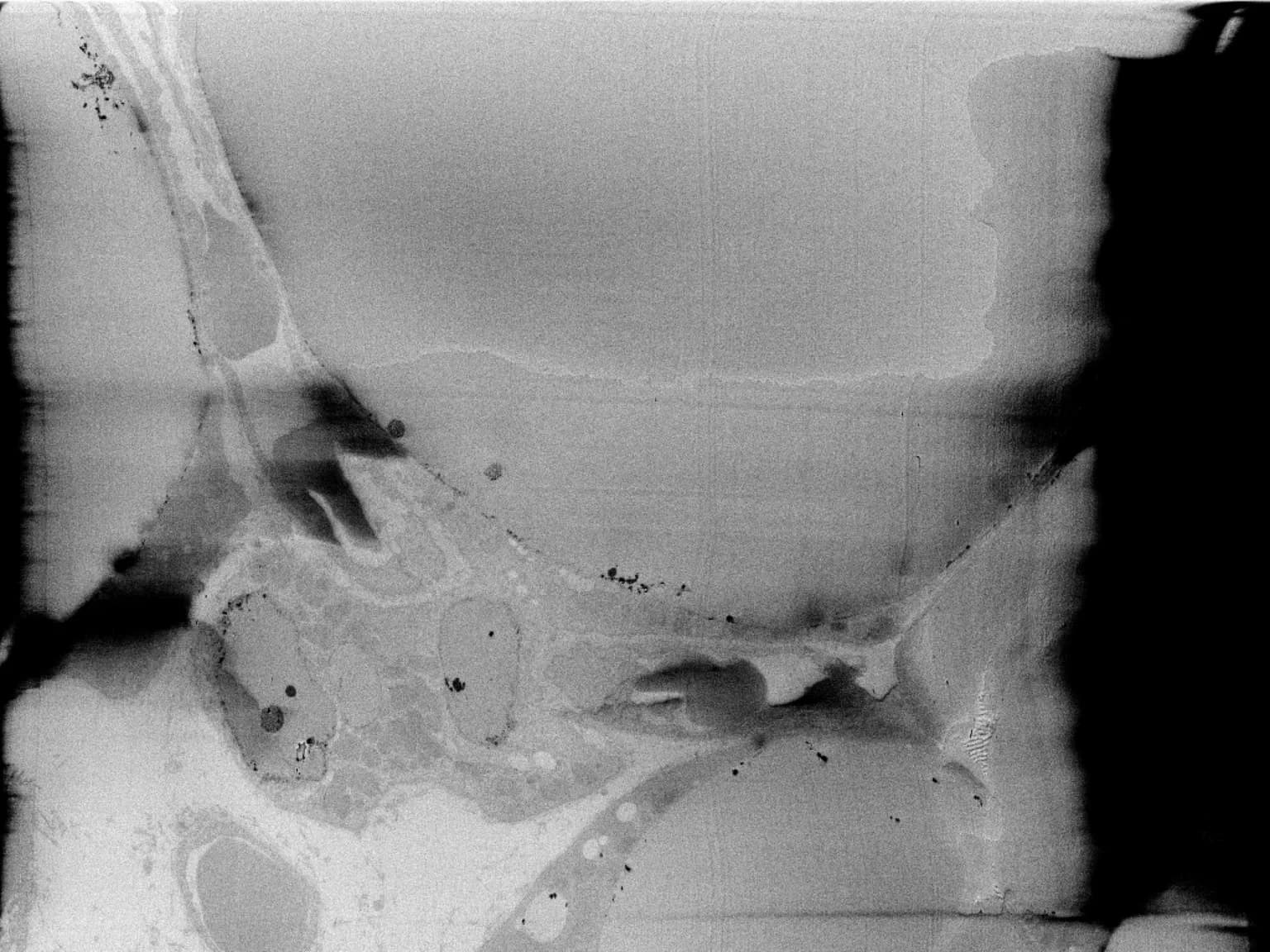

Without PCN

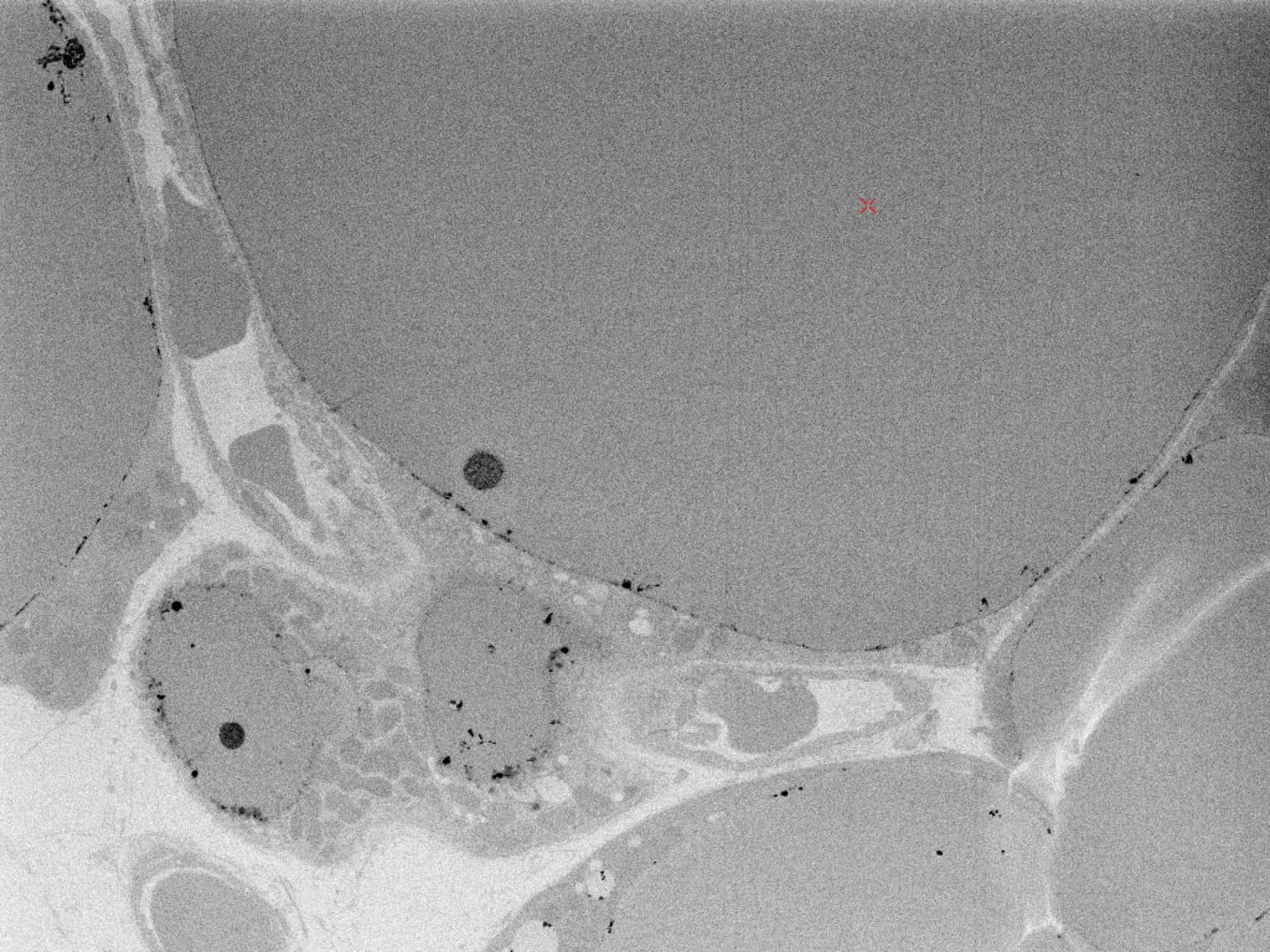

With PCN
Specifications
Every figure the needle is built around.
performance
1 μm
positioning resolution
0–0.6 MPa
gas pressure
0.5 mm
needle outer diameter
High vacuum
operating environment
gas delivery
- push-fit gas connector4 mm
- compatible gasesN₂, Ar & more
- needle materialBrass
compatibility
- katana microtomesNew & existing
- microscope compatibilityAll standard SEMs
- designed forSBF-SEM
